Theory |
by Example Series Transformation |

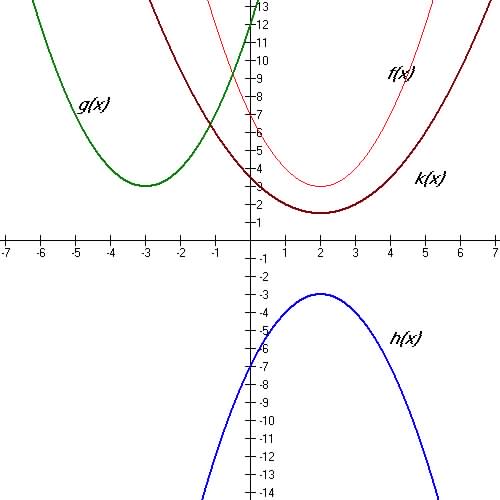

Question 1 Given f(x) drawn below, find possible formulas in terms
of f(x) for
3 transformed graphs of f(x):
g(x): f(x+5)
h(x): -f(x)
k(x): ½ f(x)
Question 2 - Given a function y = f(x): Graph the transformation g(x)= ½ f(-x):
Question 3 Given f(x) drawn below, find possible formulas in terms
of f(x) for
3 transformed graphs of f(x):
g(x): f(x) + 3
h(x): f(-x)
k(x): ½ f(x)
Question 4 - Find the inverse function of the following i.e. x = f(y):
(a) y = (b) y =
(a)
(b) square both sides:
Question 5 - Given a function y = f(x): Graph the transformation
g(x)= -2 f(x+1):

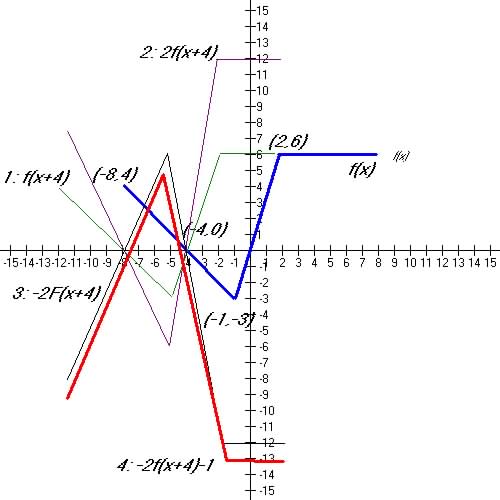

Question 6. Sketch the following transformations of the function f(x) shown below:
g(x) = -2 f (x + 4) - 1 (last part of trans. Difficult)
